Type:Palm Bunch Reception
Processing Material: Palm fruit
Processing Capacity: 5-120TPH

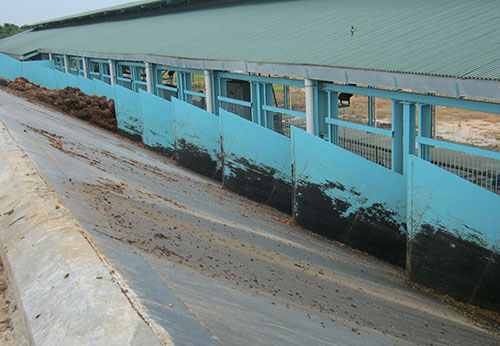

Palm bunch reception is the primary processing of crude palm oil processing machine. It makes preparation for raw material processing and treatment.Palm bunch reception process is finished at loading ramp. This loading ramp makes palm fruit unloading, cleaning, storage platforms, adopting all hydraulic segmented discharge.Huatai palm bunch reception section make primary preparation of crude palm oil pressing, and enable processing of palm bunch efficiently.
Collecting the ripe fresh cluster from the orchard and convey by trucks, then pour the fluster into the discharge door after weighed by ground weigher . The discharge door has discharging channels, the upper and lower switches of the iron gate are controlled by pneumatic, Pneumatic control system consists of air compressor and pneumatic control devices. Start the control valve to open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.
RECEPTION STATION EQUIPMENT LIST:
1.Road Weighbridge
2.FFB Loading Ramp C/W Platform&Hydraulic System
3.FFB Scraper Conveyor No.2
4.FFB Incline Scraper Conveyor No.3
5.FFB Distributing Scraper Conveyor
6.Recycling FFB Conveyor
